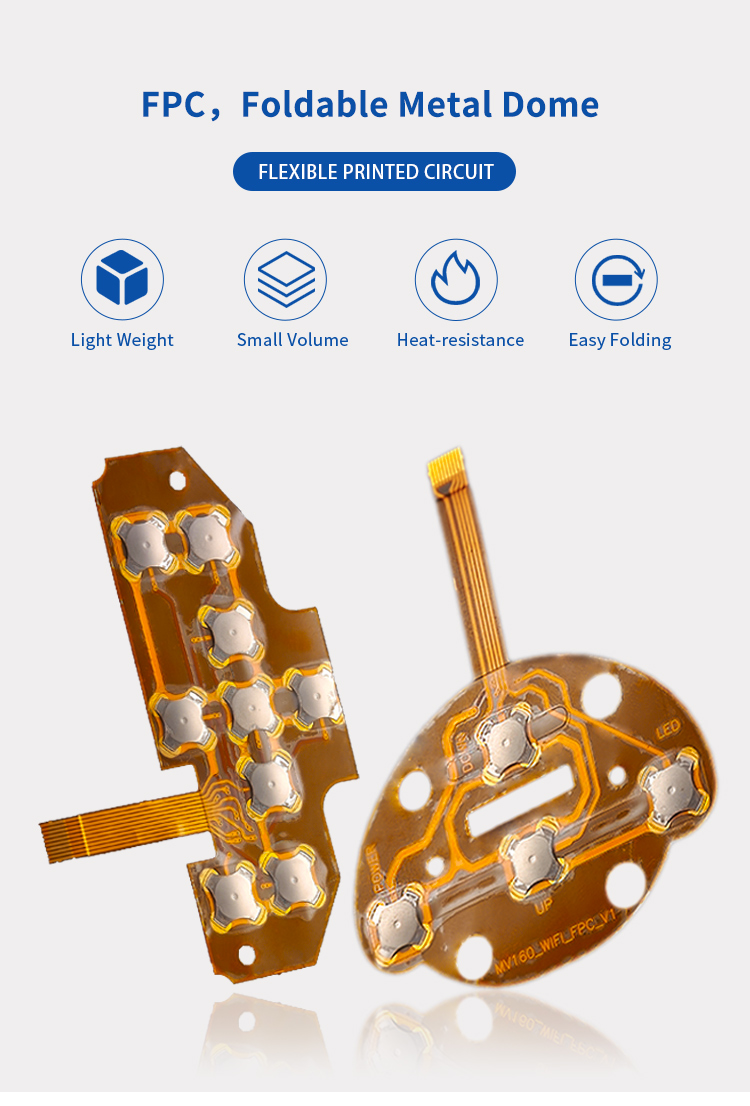

Foldable Single Side Flex FPC Dome Array 3M Adhesive With Dual Access Dome Array

Name: Foldable Single Side Flex FPC Dome Array 3M Adhesive With Dual Access Dome Array
Brand: Guanghongda
Price: 0.25 USD

Buy cheap Foldable Single Side Flex FPC Dome Array 3M Adhesive With Dual Access Dome Array product

Place of Origin : China

Brand Name : Guanghongda

Model Number : GHD193002

Certification : ROHS compliance

MOQ : 500-999 Pieces

Price : $0.25

Application : Telecommunication Equipment

Keypad Button Material : PCB

Metal Dome Material : SUS301

Feature : Folding , small volume

Color : Customized acceptable

Adhesive : 3M

Metal dome trip : 0.12~0.6mm( custom as per requirement)

Thickness : ~0.15mm ( as per requirement)

Life-time : 100K ~ 3KK shots

Size tolerance : +/-0.1mm

OEM service : acceptable

Selling Units : Single item

Single package size : 10X7X0.2 cm

Single gross weight : 0.100 kg

Package Type : 1) packed by PET bag ( Full package qty : 200 sheet / PET bag ) Carton package, inner 4 -corner wrap by bubble foam prevent from damage during the transporation

Contact Now

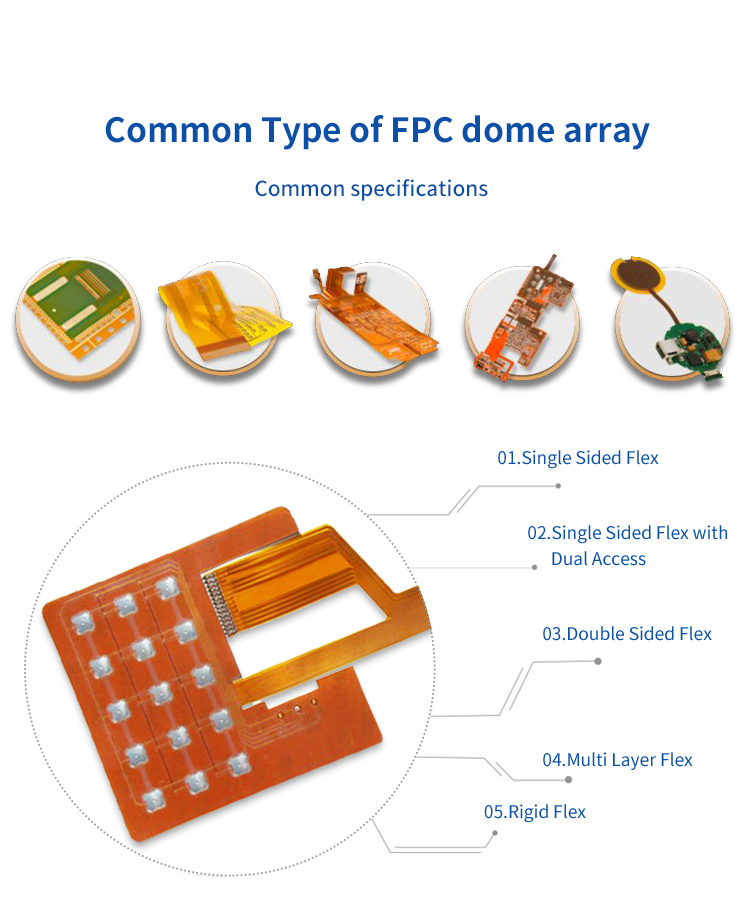

Foldable Single Side Flex FPC Dome Array 3M Adhesive With Dual Access Dome Array

What is FPC and How does it work ?

Flexible printed circuits, also known as (flex circuits), are sometimes regarded as a (printed circuit board) (PCB) that can bend, when in reality there are significant differences between PCB's and flex circuits when it comes to design, fabrication and functionality

Since flex circuits (flexible circuit) has excellent working efficiency and strong heat-resistance, it is widely used as a core component of all electronic goods such as cameras, computers and peripheral equipments, mobile phones, video & audio units, camcorders, printers, DVD, TFT LCD, satellite equipment, military equipments, and medical instruments.

Foldable Single Side Flex FPC Dome Array 3M Adhesive With Dual Access Dome Array

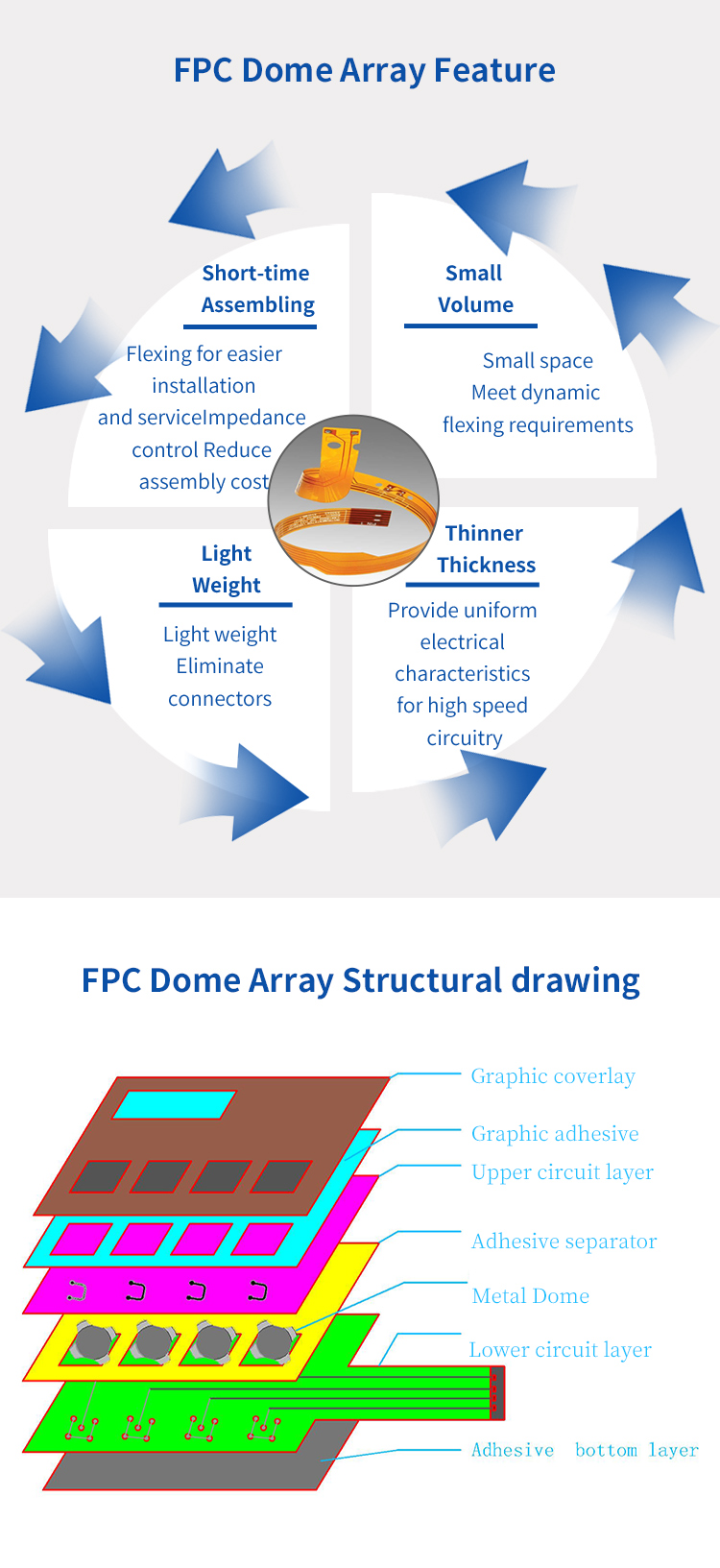

Major Technical Parameters & Advantages of Metal Dome Array
Item	Description	TECHNICAL INDEX
1	LONG LIFE-TIME	Round ,Oval, four - legged, triangular, rectangular, three - point side, irregular
		Stainless Steel ,Nickel Plating ,Silver Plating & gold Plating
		Dimple Numbers : 0/1/3/4/5 dimple
		LIFE-TIME : 300 ~3000 Thousand Times
		In compare of initial value , The change rate <30% after 1M press-test
2	Click %	Force:100gf~450gf, Tolerance : ±20gf
2	Click %	Normal Condition
3	Stroke	Customize in accordance with Customer ‘s requirement
3	Stroke	0.12~0.6mm ,Spec. various by different METAL DOME
4	Dimension Tolerance	Position dimension tolerance : + /- 0.1mm
5	Good Weatherproof Resistance	Under the conditions of 55±2℃,R.H.95% , Replacement 24H , and then resume 2H under the normal room temperature
6	Good Corrosion Resistance	High Temperature can bear : +70℃ Lower Temperature can bear : -40℃
7	Tape Adhesive Test	0.6↑(Unit:kgf/inch)
8	Stable Tape Shrinkage rate	MD(%):0.5 ↓ CD(%):0.3 ↓
8	Stable Tape Shrinkage rate	(Unit:100℃*40mins)
9	Small Instantaneous Contact Resistance	(Nickel Plating ) <1Ω, ( Stainless Steel )<3Ω
10	Total Thickness of Base materials	0.05mm,0.075mm,0.1mm,0.125mm,0.15mm; Normal Thickness Spec.
10	Total Thickness of Base materials
11	Light-Guide-film Uniformity	>75%

Foldable Single Side Flex FPC Dome Array 3M Adhesive With Dual Access Dome Array

Q1: Are you Trading company or manufacturer ?

A: We are a Professional Trading & Manufacturer Integrated .

Q2 : Can you offer OEM Service ?

A: Surely Okay , we have Seasoned OEM service experience .

Q3: what is the Lead time of sample ?

A : It takes 2-7working days depends .

Q4: How fast can i get the Quotation ?

A: 30mins ~ 24Hours depends .

Please do not hesitate to contact with us , if you have any inquires .
