Telecommunication Equipment Tactile Metal Domes 0.14~0.5mm Total Height Durable

Name: Telecommunication Equipment Tactile Metal Domes 01405mm Total Height Durable
Brand: Guanghongda
Price: 0.25 USD

Buy cheap Telecommunication Equipment Tactile Metal Domes 0.14~0.5mm Total Height Durable product

Place of Origin : China

Brand Name : Guanghongda

Model Number : GHD194003

Certification : ROHS compliance

MOQ : 500-999 Pieces

Price : $0.25

Application : Telecommunication Equipment

Keypad Button Material : PET

Metal Dome Material : SUS301

Total Height : 0.14~0.5mm

Metal dome Force : 100~600gf , +/-30gf

click ratio : >30%

Lifetime : 300k~ 2kk hits

Salt sprary Chamber Testing Conditions : -40 ~ +70 degrees

Reliable Routine Test : 55+/-2 degrees , R.H. 95% , 48H

Size tolerance : +/-0.1mm

OEM service : acceptable

Selling Units : Single item

Single package size : 10X7X0.2 cm

Single gross weight : 0.100 kg

Package Type : 1) packed by PET bag ( Full package qty : 200 sheet / PET bag ) Carton package, inner 4 -corner wrap by bubble foam prevent from damage during the transporation

Contact Now

Telecommunication Equipment Tactile Metal Domes 0.14~0.5mm Total Height Durable

What is LGF Dome Array and How does it work ?

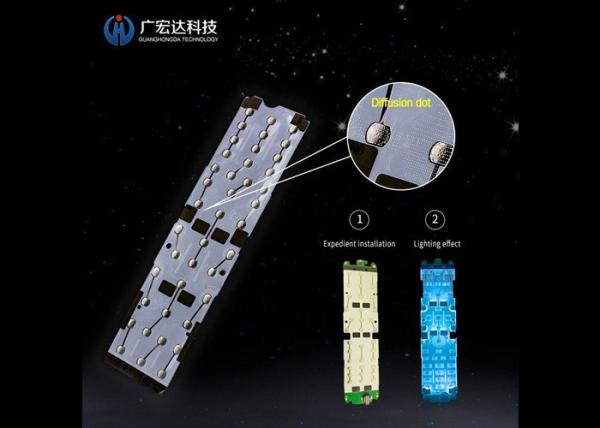

LGF metal dome array , which full name is Light Guide Film , it is a new design . which used to replace LED in function , in comparsion with LED , lighting Uniformity; When we add a LGF on current normal double layer or EMI dome array, it becomes a LGF dome array. It can achieve great result of light distribution.see from the design , the light under keypad is coming from the LED on PCB motherboard. We need to put about 8-10 pieces LED on each board, but if the design changed to use LGF, then we can save several LED, as well as SMT fee.

Telecommunication Equipment Tactile Metal Domes 0.14~0.5mm Total Height Durable

What is the LGF DESIGN PRINCIPLE & What is the Advantage ?

LGF, at least one surface out of front and rear surfaces of the light guide film is formed with a pattern such that density increases as distanced from a light source to allow light to be uniformly supplied to the keypad, or is concentratively formed with a pattern at a particular region of the light guide film to allow the light to be concentratively supplied to a particular region of the keypad.

Telecommunication Equipment Tactile Metal Domes 0.14~0.5mm Total Height Durable

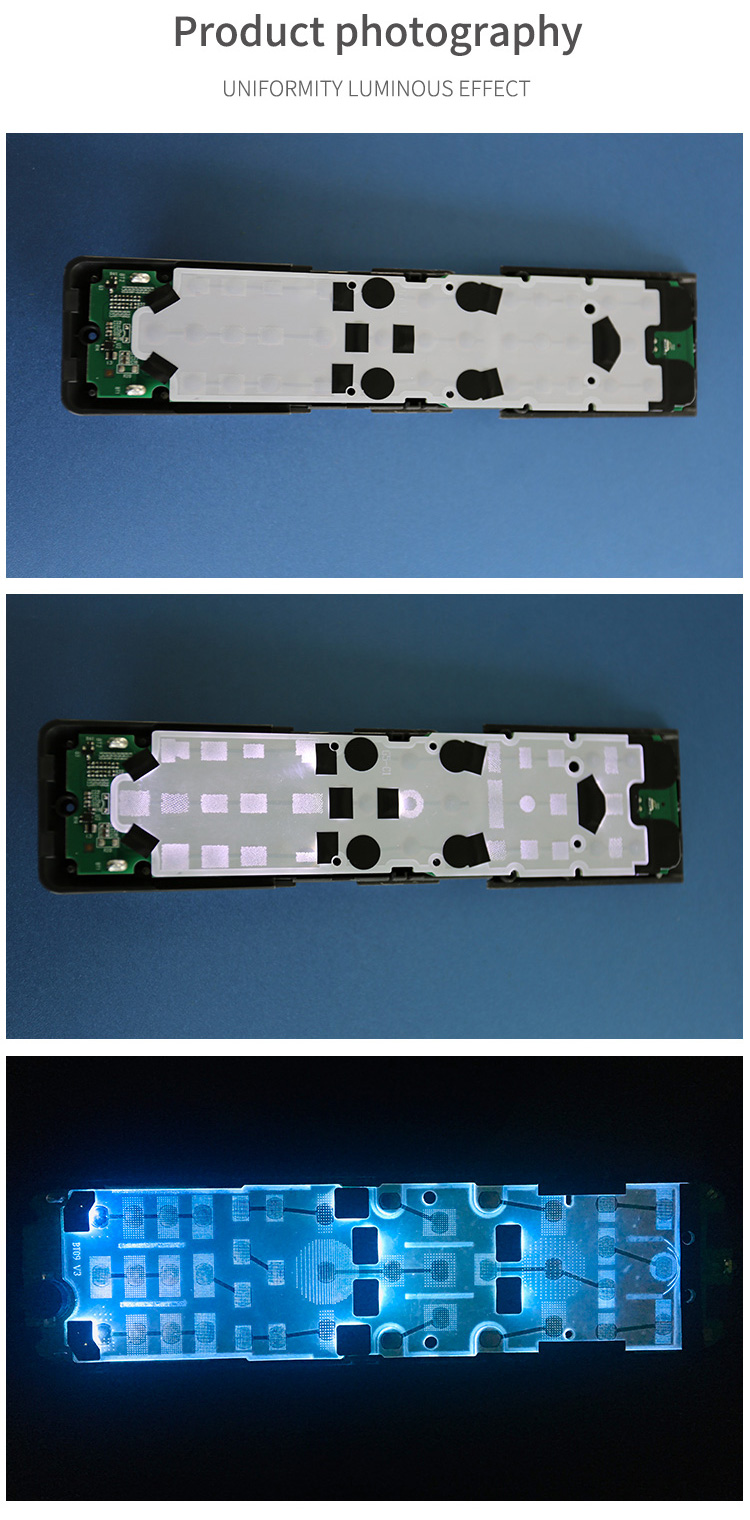

PRODUCT PHOTOGRAP

Major Technical Parameters & Advantages of Metal Dome Array
Item	Description	TECHNICAL INDEX
1	LONG LIFE-TIME	Round ,Oval, four - legged, triangular, rectangular, three - point side, irregular
		Stainless Steel ,Nickel Plating ,Silver Plating & gold Plating
		Dimple Numbers : 0/1/3/4/5 dimple
		LIFE-TIME : 300 ~3000 Thousand Times
		In compare of initial value , The change rate <30% after 1M press-test
2	Click %	Force:100gf~450gf, Tolerance : ±20gf
2	Click %	Normal Condition
3	Stroke	Customize in accordance with Customer ‘s requirement
3	Stroke	0.12~0.6mm ,Spec. various by different METAL DOME
4	Dimension Tolerance	Position dimension tolerance : + /- 0.1mm
5	Good Weatherproof Resistance	Under the conditions of 55±2℃,R.H.95% , Replacement 24H , and then resume 2H under the normal room temperature
6	Good Corrosion Resistance	High Temperature can bear : +70℃ Lower Temperature can bear : -40℃
7	Tape Adhesive Test	0.6↑(Unit:kgf/inch)
8	Stable Tape Shrinkage rate	MD(%):0.5 ↓ CD(%):0.3 ↓
8	Stable Tape Shrinkage rate	(Unit:100℃*40mins)
9	Small Instantaneous Contact Resistance	(Nickel Plating ) <1Ω, ( Stainless Steel )<3Ω
10	Total Thickness of Base materials	0.05mm,0.075mm,0.1mm,0.125mm,0.15mm; Normal Thickness Spec.
10	Total Thickness of Base materials
11	Light-Guide-film Uniformity	>75%

Telecommunication Equipment Tactile Metal Domes 0.14~0.5mm Total Height Durable

Q1: Are you Trading company or manufacturer ?

A: We are a Professional Trading & Manufacturer Integrated .

Q2 : Can you offer OEM Service ?

A: Surely Okay , we have Seasoned OEM service experience .

Q3: what is the Lead time of sample ?

A : It takes 2-7working days depends .

Q4: How fast can i get the Quotation ?

A: 30mins ~ 24Hours depends .

Please do not hesitate to contact with us , if you have any inquires .
